Name: High Thermal Efficiency Natural Circulation Water Tube Boiler Fin Tube for Power Station
Brand: ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
Price: 2.00 USD
Availability: InStock

Startseite Produkte Kessel-Flossen-Rohr

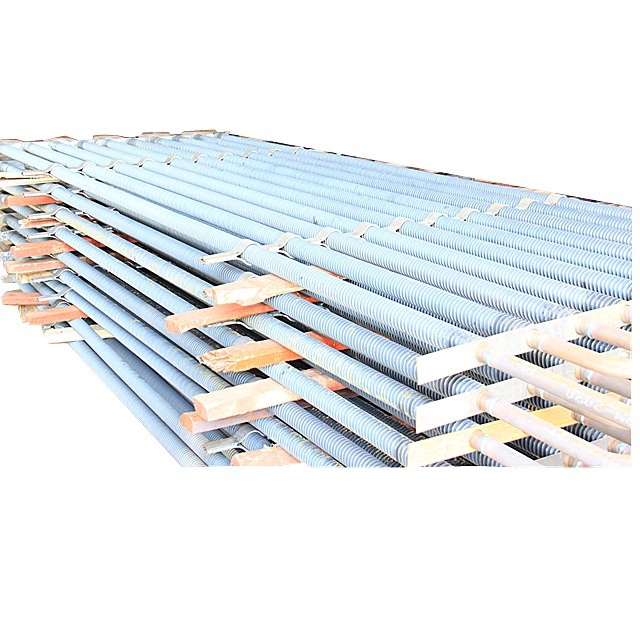

High Thermal Efficiency Natural Circulation Water Tube Boiler Fin Tube for Power Station

Produktdetails:

Herkunftsort:	Jiangsu, China
Markenname:	Hua Dong

Zahlung und Versand AGB:

Min Bestellmenge:	20
Preis:	$2,200-2,500

Kontakt

Ausführliche Produkt-Beschreibung

Typ:	Natürliche Zirkulation	Struktur:	Wasserröhre
Druck:	Hochdruck	Dampferzeugung:	Max. 20 t/h
Stil:	horizontal	Kraftstoff:	Kohlenbefeuert
Ausgabe:	Heißes Wasser	Material:	Kohlenstoff/Legierung/Edelstahl
Wärmeeffizienz:	92,4 %–94,5 %	Kraftstofftyp:	Cola -Ofengas
Gewicht:	5 bis 50 Tonnen	Basisrohr:	geschweißt oder nahtlos
Wärmeübertragung:	Hohe Effizienz	Rauchgaswiderstand:	Niedriger Widerstand
Platzbedarf:	Kleiner Raum
Hervorheben:	High Thermal Efficiency Boiler Fin Tube , Natural Circulation H-fin Tube , Water Tube Spiral Fin Tube

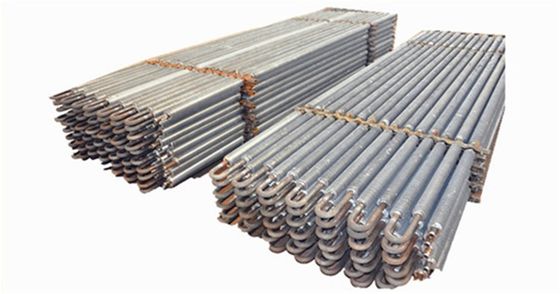

Carbon Steel Boiler Spiral Fin Tube for Boiler Spare Parts Heat Exchanger

Product Description

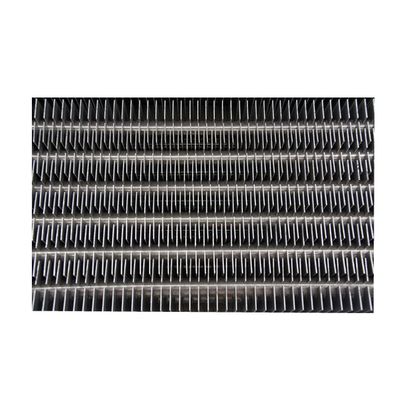

H-fin Tubes feature two steel discs with fluorescent tubes symmetrically welded together to form fins (butterfly piece fins), creating an H-shaped profile. This design offers energy efficiency and extended heating surface area. The tubes feature high fusion weld rates and exceptional weld tensile strength. When assembled with H economizers, they deliver high efficiency, low resistance, minimal wear, and lightweight performance.

Product	H-fin Tube
Base Pipe	Welded or Seamless
Material	Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys
Application	Economizer, Evaporator, Superheater, Air heater and more

Structure

Our H-fin tubes are custom-designed to meet specific customer requirements and operational conditions. We manufacture safe, reliable, and efficient tubes with high heat transfer efficiency, low flue gas resistance, and compact space requirements. HD BOILER maintains comprehensive quality assurance systems for all products.
