Name: Stainless Carbon Alloy Steel Serpentine Tube With High Corrosion Resistance
Brand: ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
SKU: Schlangenröhre
Price: 4,900.00 USD
Availability: InStock

Startseite Produkte Serpentinenrohr

Stainless Carbon Alloy Steel Serpentine Tube With High Corrosion Resistance

Produktdetails:

Herkunftsort:	China (Festland)
Markenname:	HDT
Zertifizierung:	ASME, TUV, SGS, ABS, PED, ISO9001, Grade A
Modellnummer:	Schlangenröhre

Zahlung und Versand AGB:

Min Bestellmenge:	500 Tonnen
Preis:	800 - 9000 USD / ton
Verpackung Informationen:	Seereigerhöhe zum Exportieren
Lieferzeit:	60-75days
Zahlungsbedingungen:	L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	Ungefähr 1000 Tonnen / Monat

Kontakt

Ausführliche Produkt-Beschreibung

Material:	Edelstahl, Kohlenstoffstahl, Legierungsstahl	Zertifikat:	ASME, TUV, SGS, CER, GRAD A, ISO9001
Form:	U-Biegung, gerade, Spule, Schlangenrohr	Anwendung:	Industrielles/Kraftwerk
Korrosionsbeständigkeit:	Hoch	Farbe:	Anforderung des Kunden
Standard:	ASME, EN, ISO	Druckbereich:	Bis zu 100 bar

Stainless Carbon Alloy Steel Serpentine Tube With High Corrosion Resistance

Product Description

The design of the boiler serpentine tube aim to increase the heat exchange area and improve the heat exchange efficiency. This kind of pipe is usually made of metal material, which has good thermal conductivity and corrosion resistance, and it can adapt to various harsh working environments. The shape of the serpentine pipe allows the fluid to form turbulence during the flow process, further enhancing the heat exchange effect. In the power industry, it can be used in the cooling system of power plants.

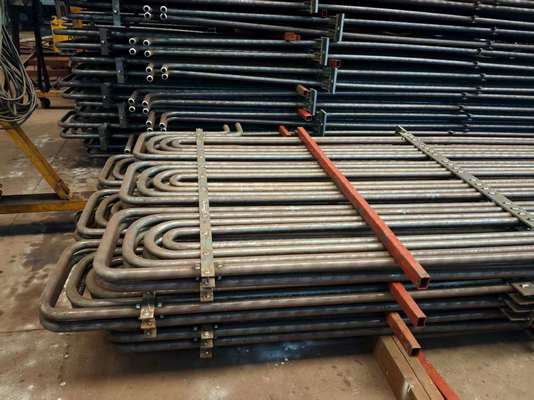

Stainless Carbon Alloy Steel Serpentine Tube With High Corrosion Resistance 0

Details

All the raw materials will be firstly made pipeline cutting.
It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.

Setting Information
process	welding
structure	horizontal or vertical
material	carbon steel, alloy steel
tubes	φ32, 38, 42, etc.
size	customized
brand	HTEG
Warranty	18 months

Features

Product Name: Superheater And Reheater
Service Life: Long Service Life
Design: Customized
Maintenance: Low Maintenance
Pressure: High Pressure
Safety: High Safety
Key Features:
- Designed for CFB Boiler
- Superheater Coils for high temperature and pressure operation
- Reheater Coils for additional heating of steam

Differences

Type	Advantages	Disadvantages	Supporting method
Pendant-type	1.Firm structural support	1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom.	supported from above
Inverted-type	1.Proper drainage of the condensed steam	1. Lack the structural rigidity, especially in high speed gas flow	Supported from below
Horizontal -type	1. Proper drainage 2. Good structural rigidity.	1. They do not view the flam directly so they are mainly from the convective type	Usually supported in the vertical gas ducts parallel to the main furnace.

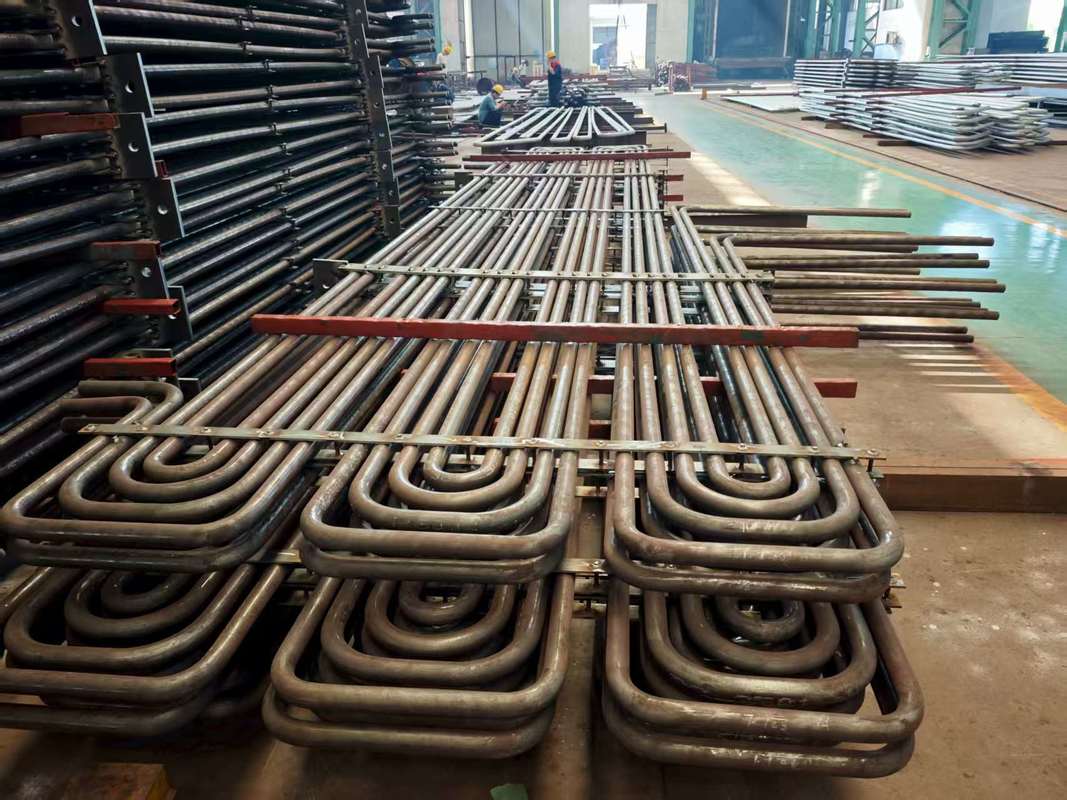

Stainless Carbon Alloy Steel Serpentine Tube With High Corrosion Resistance 1

Applications

Superheaters and reheaters are built for high-pressure use and can be customized to specific needs. They raise boiler-produced steam temperature to boost turbine heat exchange efficiency.

Superheater coils use stainless steel, carbon steel, or alloy steel—ensuring long service life and abrasion resistance, perfect for harsh environments.

These components work for coal, biomass, or gas-fired power plants. Their long lifespan cuts maintenance needs, and they’re especially useful for plants needing high-pressure steam—providing reliable, efficient steam heating to boost overall system efficiency.

Superheaters and reheaters fit various scenarios: ideal for high-pressure steam power plants (coal/biomass/gas-compatible), customizable for wide applications. With abrasion-resistant coils for tough conditions, they enhance turbine heat exchange and are essential for power generation.

Packing and Shipping

Product Packaging:
The Superheater And Reheater product will be carefully packaged to ensure safety during transportation. It will be wrapped in protective material and placed in a sturdy cardboard box with ample padding to prevent any damage during shipping.

Shipping:
The Superheater And Reheater product will be shipped via a reputable courier service to ensure timely and safe delivery. Delivery times may vary depending on the destination, but typically range from 3-7 business days. Customers will receive a tracking number once the product has been shipped so they can monitor its progress and estimated delivery date.

Company Introduction

Hua Dong Energy Technology Started to Produce Serpentine Tube Since 1985,Up to now already supply more than 300,000 tons Steel Serpentine Tube to over 30 countries.

Hua Dong Energy Technology deals with Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 35 years, every year sell more than 50000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001, ISO 14001.

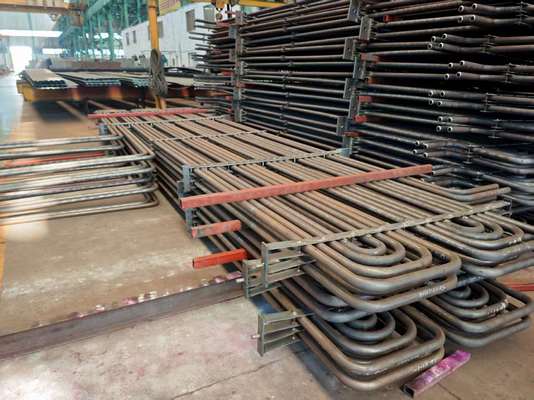

Stainless Carbon Alloy Steel Serpentine Tube With High Corrosion Resistance 2
