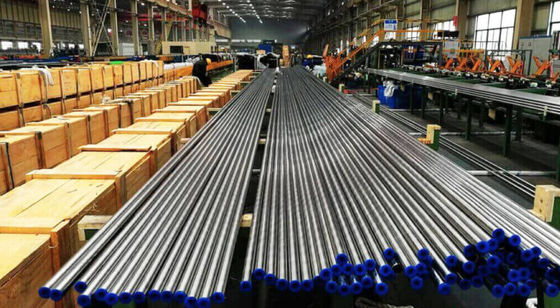

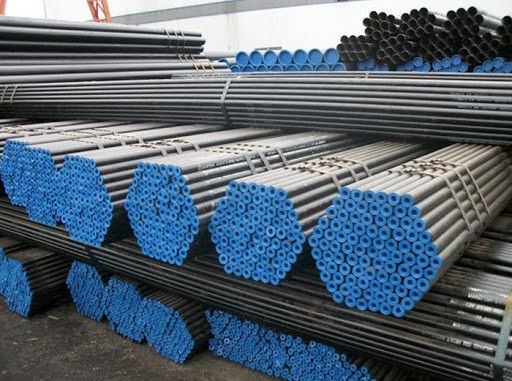

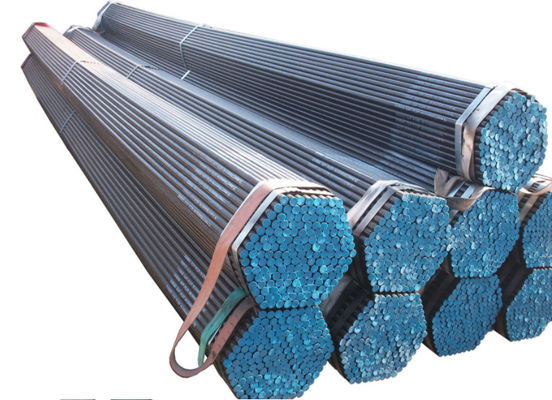

Rauchrohre ASME SA-335M Heat Resisting Seamless leiten
Product Details
| Stahlsorte: | ASTM A213/ASME SA213 T11, T22, T1, T23, T5, T9.T91, T92 | Oberfläche: | Helles getempert |
|---|---|---|---|
| Standard: | ASTM A213/SMES SA213 | Anwendung: | Boiler&heat-Austauscher, Überhitzer, Nachbrenner, Luftvorwärmer, Ekonomiser |
| Od: | 1/4" BIS 5" | Zerstörungsfreie Prüfung: | ET/UT/HT |
| Hervorheben |
Hitze,die nahtlosen Rauchrohren widersteht,ASME SA-335M Seamless Boiler Tubes |
||
Product Description
ASME SA-335M Alloy Steel Tubes für nahtlose Stahlrohre für Kessel-Industrie, Hitze-widerstehendes nahtloses Stahlrohr
Hua Dong Energy Technology exportiert Stahlkesselrohr (nahtloses Stahlrohr und geschweißtes Stahlrohr) entsprechend den Produktionsverfahren, Stahlden kesselrohrspezifikationen mit Gesamtausmassen (wie dem Durchmesser oder der Länge) und die Wandstärke, Stahlkesselrohr kann benutzte, thermische Technologieausrüstung in Vorbereitung, Industriemaschinen, geologische Erforschung des Erdöls, Behälter, chemische Industrie und anderer spezieller Zweck sein.
| Kohlenstoff | Chromiun | Niedrige Temperatur | Edelstahl | Duplex | Copper& Bronze | Titan | Ni-Legierung | ||
| SA178-A | SA213-T1 | SA333-Gr.1 | SA213 | TP316L | A789-S31803 | SB111-C70600 | SB338-GR.1 | SB163 | NO2200 |
| SA178-C | SA213-T11 | SA333-Gr.3 | SA249 | TP316H | A789-S32205 | SB111-C71500 | SB338-GR.2 | SB167 | NO2201 |
| SA179 | SA213-T12 | SA333-Gr.6 | SA268 | TP316Ti | A789-S32750 | SB111-C71640 | SB338-GR.5 | SB444 | NO8020 |
| SA192 | SA213-T22 | SA333-Gr.7 | SA269 | TP316LN | A789-S32760 | SB111-C68700 | SB338-GR.7 | SB514 | NO6022 |
| SA209-T1 | SA213-T5 | SA333-Gr.8 | SA376 | TP321 | A789-S32707 | SB111-C44300 | SB338-GR.9 | SB619 | N10276 |
| SA209-T1a | SA213-T9 | SA334-Gr.1 | TP304 | TP321H | A789-S32304 | SB338-GR.12 | SB622 | NO4400 | |
| SA209-T1b | SA213-T91 | SA334-Gr.3 | TP304L | TP347 | A789-S31500 | SB626 | NO6600 | ||
| SA210-A1 | SA334-Gr.6 | TP304H | TP347H | S31254 | SB674 | NO6601 | |||
| SA210-C | SA334-Gr.7 | TP304N | TP405 | 254MA | SB677 | NO6625 | |||
| SA214 | SA334-Gr.8 | TP310H | TP409 | 17-4PH | SB704 | NO690 | |||
| SA513 M.Ü. 1010 | TP310S | TP410 | 17-7PH | SB705 | NO8800 | ||||
| SA513 M.Ü. 1015 | TP309S | TP430 | 15-7PH | N1001 | NO8810 | ||||
| SA513 M.Ü. 1020 | TP317 | TP439 | N10665 | NO8811 | |||||
| TP317L | TP444 | N10675 | NO8825 | ||||||
| TP348 | TP446 | TP904L | |||||||
| TP347HFG | |||||||||
| Rohr-Größen für Wärmetauscher u. Kondensatore u. Kessel | |||||||||
| Außendurchmesser | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Wandstärke Millimeter | |||||||||
| 0,508 | 0,71 | 0,89 | 1,24 | 1,65 | 2,11 | 2,77 | 3,40 | ||
| Millimeter | Zoll | Gewicht kg/m | |||||||
| 6,35 | 1/4 | 0,081 | 0,109 | 0,133 | 0,174 | 0,212 | |||
| 9,53 | 3/8 | 0,126 | 0,157 | 0,193 | 0,257 | 0,356 | 0,429 | ||
| 12,7 | 1/2 | 0,214 | 0,263 | 0,356 | 0,457 | 0,612 | 0,754 | ||
| 15,88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0,995 | ||
| 19,05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1,236 | ||
| 25,4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1,234 | 1,574 | 2,05 | |
| 31,75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1,244 | 1,574 | 2,014 | 2,641 | |
| 38,1 | 1 1/2 | 0,667 | 0,832 | 1,144 | 1,514 | 1,904 | 2,454 | 3,233 | |
| 44,5 | 1 3/4 | 1,342 | 1,774 | 2,244 | 2,894 | 3,5 | |||
| 50,8 | 2 | 1,549 | 2,034 | 2,574 | 3,334 | 4,03 | |||
| 63,5 | 2 1/2 | 1,949 | 2,554 | 3,244 | 4,214 | 5,13 | |||
| 76,2 | 3 | 2,345 | 3,084 | 3,914 | 5,094 | 6,19 | |||
| 88,9 | 3 1/2 | 2,729 | 3,609 | 4,584 | 5,974 | 7,27 | |||
| 101,6 | 4 | 4,134 | 5,254 | 6,854 | 8,35 | ||||
| 114,3 | 4 1/2 | 4,654 | 5,924 | 7,734 | 9,43 | ||||
T2 ASTM A213/ASME SA213, chemische Zusammensetzung T11, T12, T22, T91, T92 und mechanische Eigenschaften
| Grad | Chemikalie Composition% | ||||||||
| C | Si | Mangan | P, S maximal | Cr | MO | Ni maximal | V | Al Max | |
| T2 | 0.10~0.20 | 0.10~0.30 | 0.30~0.61 | 0,025 | 0.50~0.81 | 0.44~0.65 | – | – | – |
| T11 | 0.05~0.15 | 0.50~1.00 | 0.30~0.60 | 0,025 | 1.00~1.50 | 0.44~0.65 | – | – | – |
| T12 | 0.05~0.15 | Maximales 0,5 | 0.30~0.61 | 0,025 | 0.80~1.25 | 0.44~0.65 | – | – | – |
| T22 | 0.05~0.15 | Maximales 0,5 | 0.30~0.60 | 0,025 | 1.90~2.60 | 0.87~1.13 | – | – | – |
| T91 | 0.07~0.14 | 0.20~0.50 | 0.30~0.60 | 0,02 | 8.0~9.5 | 0.85~1.05 | 0,4 | 0.18~0.25 | 0,015 |
| T92 | 0.07~0.13 | Maximales 0,5 | 0.30~0.60 | 0,02 | 8.5~9.5 | 0.30~0.60 | 0,4 | 0.15~0.25 | 0,015 |
| Grad | Chemikalie Composition% | Mechanische Eigenschaften | |||||||
| W | B | Notiz: | N | T.S | Y.P | Verlängerung | Härte | ||
| T2 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T11 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T12 | – | – | – | – | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW (85HRB) | |
| T22 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T91 | – | – | 0.06~0.10 | 0.03~0.07 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW (25HRB) | |
| T92 | 1.50~2.00 | 0.001~0.006 | 0.04~0.09 | 0.03~0.07 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW (25HRB) | |
T2 ASTM A213/ASME SA213, T11, T12, T22, T91, Toleranz T92
| Außendurchmesser | Od-Toleranz | GEWICHT Toleranz | Ovality-Toleranz | Schneiden Sie Längen-Toleranz |
| OD≤ 12, 7 Millimeter | ± 0, 13 Millimeter | ± 15% | – | + 3, 18 Millimeter, – 0 Millimeter |
| 12, 7 Millimeter < OD=""> | ± 0, 13 Millimeter | ± 10% | maximal, 1, 65 Millimeter | + 3, 18 Millimeter, – 0 Millimeter |
| 38, 1 Millimeter < OD=""> | ± 0, 25 Millimeter | ± 10% | maximal, 2, 41 Millimeter | + 4, 76 Millimeter, – 0 Millimeter |
- Rohr des legierten Stahl-T11 für Stromerzeugung, Erdöl und andere Dienstleistungen der hohen Temperatur
- Rohr des legierten Stahl-T22 für Stromerzeugung, Erdöl und andere Dienstleistungen der hohen Temperatur
- Rohr des legierten Stahl-T5 für Erdöl
- Rohr des legierten Stahl-T9 für Erdöl
- Rohr des legierten Stahl-T91 für Stromerzeugung
- Rohr des legierten Stahl-T92 für Stromerzeugung
- Rohr des legierten Stahl-T1 für Kesselersatz und -reparatur
- Rohr T1-SA209 für Herstellungskessel
- Legierter Stahl-Rohr ASTM A213/ASME SA213 T5 für Überhitzer
- Legierter Stahl-Rohr ASTM A213/ASME SA213 T5 für Wärmetauscher
Bescheinigung
