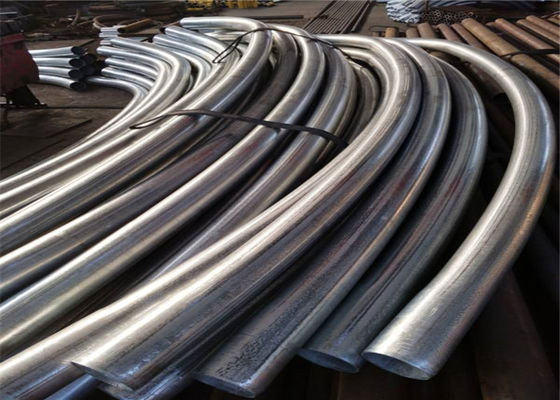

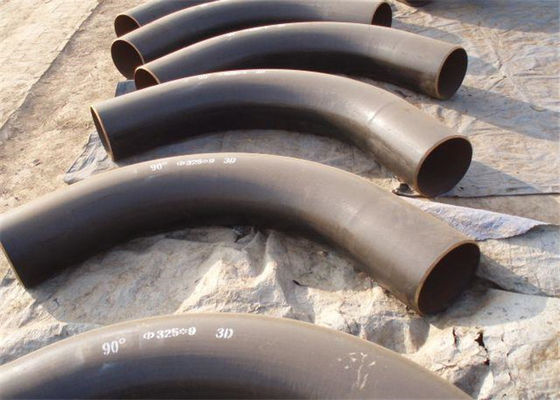

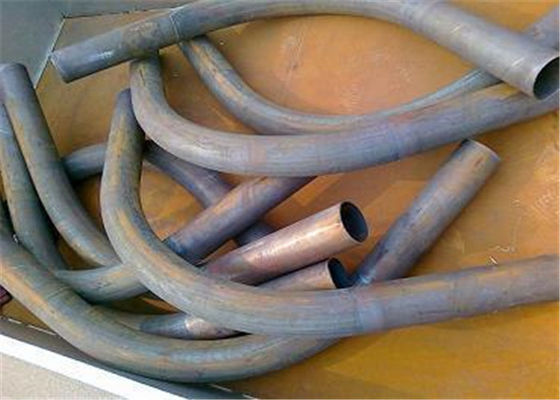

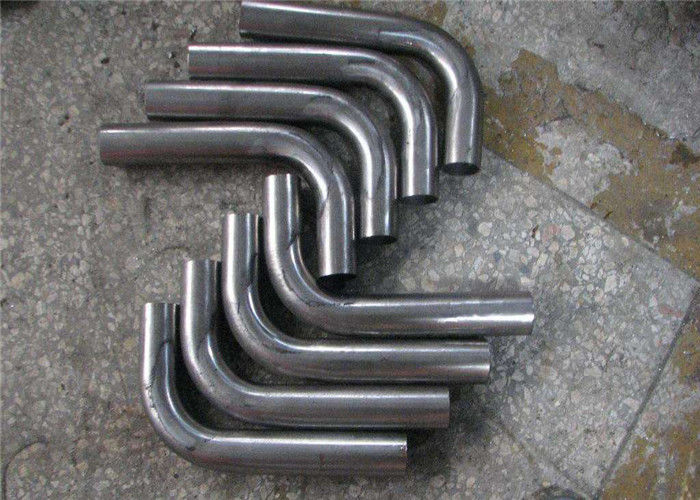

Gesundheitlicher 1-1/2“ 2.5D Kohlenstoff geschmiedete Stahlart Rauchrohr des ellbogens U
Product Details
| Material: | Kohlenstoffstahl | Anwendung: | Kessel, Energie, Erdölchemikalie, Bergbau, Nahrung, Papier, Gas und flüssige Industrie |
|---|---|---|---|
| Größe: | 2", 3", 4", 6", 8" | Radius: | 1.5D, 2.5D, 5D, 3D |
| Stärke: | Besonders angefertigt | Spezielles Rohr: | U-Art Rauchrohr |
| Hervorheben |
“ Geschmiedeter Stahlellbogen gesundheitliches 1-1/2,Kohlenstoff geschmiedeter Stahlellbogen 2.5D,Gesundheitlicher Kohlenstoff geschmiedeter Stahlellbogen 2.5D |
||
Product Description
Ellbogen-Stahlrauchrohre ASTM A234 WPB S LR/Kohlenstoff geschmiedeter Stahlellbogen
Produktinformation
Standard
| Nominal Rohr-Größe |
Außenseite Durchmesser |
Nach innen Durchmesser |
Wand Stärke |
Mitte Zu beenden |
Rohr Zeitplan |
Gewicht Pfund |
| 1/2 | 0,84 | 0,622 | 0,109 | 0,62 | 40 | 0,09 |
| 3/4 | 1,05 | 0,824 | 0,113 | 0,75 | 40 | 0,1 |
| 1 | 1,32 | 1,05 | 0,133 | 0,88 | 40 | 0,22 |
| 1 1/4 | 1,66 | 1,38 | 0,14 | 1 | 40 | 0,33 |
| 1 1/2 | 1,9 | 1,61 | 0,145 | 1,12 | 40 | 0,43 |
| 2 | 2,38 | 2,07 | 0,154 | 1,38 | 40 | 0,85 |
| 2 1/2 | 2,88 | 2,47 | 0,203 | 1,75 | 40 | 1,7 |
| 3 | 3,5 | 3,07 | 0,216 | 2 | 40 | 2,5 |
| 3 1/2 | 4 | 3,55 | 0,226 | 2,25 | 40 | 3,4 |
| 4 | 4,5 | 4,03 | 0,237 | 2,5 | 40 | 4,5 |
| 5 | 5,56 | 5,05 | 0,258 | 3,12 | 40 | 7,5 |
| 6 | 6,62 | 6,06 | 0,28 | 3,75 | 40 | 11,7 |
| 8 | 8,62 | 7,98 | 0,322 | 5 | 40 | 23,3 |
| 10 | 10,75 | 10,02 | 0,365 | 6,25 | 40 | 40,9 |
| 12 | 12,75 | 12 | 0,375 | 7,5 | * | 61,4 |
| 14 | 14 | 13,25 | 0,375 | 8,75 | 30 | 78,1 |
| 16 | 16 | 15,25 | 0,375 | 10 | 30 | 101 |
| 18 | 18 | 17,25 | 0,375 | 11,25 | * | 128 |
| 20 | 20 | 19,25 | 0,375 | 12,5 | 20 | 159 |
| 24 | 24 | 23,25 | 0,375 | 15 | 20 | 231 |
| 30 | 30 | 29,25 | 0,375 | 18,5 | * | 358 |
| 36 | 36 | 35,25 | 0,375 | 22,25 | * | 518 |
| 42 | 42 | 41,25 | 0,375 | 26 | * | 707 |
| 48 | 48 | 47,25 | 0,375 | 29,88 | * | 1.000 |
Extrastarkes
| Nominal Rohr-Größe |
Außenseite Durchmesser |
Nach innen Durchmesser |
Wand Stärke |
Mitte Zu beenden |
Rohr Zeitplan |
Gewicht Pfund |
| 1/2 | 0,84 | 0,546 | 0,147 | 0,62 | 80 | 0,15 |
| 3/4 | 1,05 | 0,742 | 0,154 | 0,75 | 80 | 0,16 |
| 1 | 1,32 | 0,957 | 0,179 | 0,88 | 80 | 0,28 |
| 1 1/4 | 1,66 | 1,28 | 0,191 | 1 | 80 | 0,45 |
| 1 1/2 | 1,9 | 1,5 | 0,2 | 1,12 | 80 | 0,61 |
| 2 | 2,38 | 1,94 | 0,218 | 1,38 | 80 | 1,2 |
| 2 1/2 | 2,88 | 2,32 | 0,276 | 1,75 | 80 | 2 |
| 3 | 3,5 | 2,9 | 0,3 | 2 | 80 | 3,3 |
| 3 1/2 | 4 | 3,36 | 0,318 | 2,25 | 80 | 4,5 |
| 4 | 4,5 | 3,83 | 0,337 | 2,5 | 80 | 6,2 |
| 5 | 5,56 | 4,81 | 0,375 | 3,12 | 80 | 10,5 |
| 6 | 6,62 | 5,76 | 0,432 | 3,75 | 80 | 17 |
| 8 | 8,62 | 7,63 | 0,5 | 5 | 80 | 34,3 |
| 10 | 10,75 | 9,75 | 0,5 | 6,25 | 60 | 53,5 |
| 12 | 12,75 | 11,75 | 0,5 | 7,5 | * | 77,6 |
| 14 | 14 | 13 | 0,5 | 8,75 | * | 100 |
| 16 | 16 | 15 | 0,5 | 10 | 40 | 134 |
| 18 | 18 | 17 | 0,5 | 11,25 | * | 170 |
| 20 | 20 | 19 | 0,5 | 12,5 | 30 | 209 |
| 24 | 24 | 23 | 0,5 | 15 | * | 302 |
| 30 | 30 | 29 | 0,5 | 18,5 | 20 | 475,1 |
| 36 | 36 | 35 | 0,5 | 22,25 | 20 | 686,1 |
| 42 | 42 | 41 | 0,5 | 26 | * | 936,1 |
| 48 | 48 | 47 | 0,5 | 29,88 | * | 1250 |
Produktpalette:
Größe: 1/8" NOTIZ: BIS 100 " NOTIZ:
Zeitplan: SCH20, SCH30, SCH40, GESCHLECHTSKRANKHEIT, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Art: Nahtlos/ERW/geschweißt/fabrizierte /Forged
Form: Exzenterreduzierer, konzentrischer Reduzierer
Materialien
Edelstahl-Reduzierer - SS-Reduzierer
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Kohlenstoffstahl-Reduzierer - CS Reduzierer
ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 U. WPHY 70.
Niedrige Temperatur-Kohlenstoffstahl-Reduzierer - LTCS-Reduzierer
ASTM A420 WPL3/A420WPL6
Legierter Stahl-Reduzierer - ALS Reduzierer
ASTM/ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplexstahlreduzierer
ASTM A 815 UNS KEIN S 31803, S 32205.
Nickel-Legierungs-Reduzierer
Standard
- ASTM-/ASME-SB 336.
- UNS 10276 (Reduzierer HASTELLOY C 276)
- UNS 2200 (NICKEL 200 Reduzierer),
- UNS 2201 (NICKEL 201 Reduzierer),
- UNS 4400 (Reduzierer MONEL 400),
- UNS 8020 (LEGIERUNG 20 Reduzierer),
- UNS 8825 (Reduzierer INCONEL 825),
- UNS 6600 (Reduzierer INCONEL 600),
- UNS 6601 (Reduzierer INCONEL 601),
- UNS 6625 (Reduzierer INCONEL 625),
Mehrwertdienste
- Feuerverzinkung
- Epoxidbeschichtung
Prüfungszeugnis
Mühlprüfungszeugnis gemäß en 10204/3.1B
