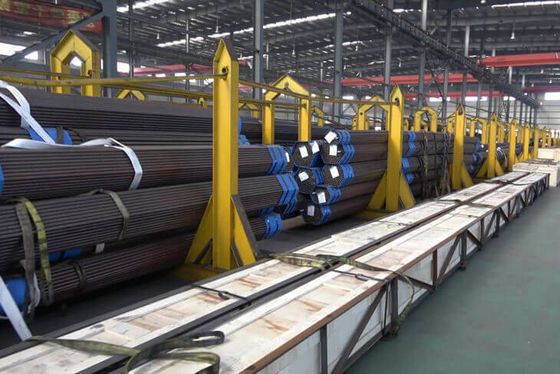

Kessel-Stahlrohr ASTM A213/ASME SA213 T9 T91 T92
Product Details
| Standard: | JIS, AISI, ASTM, GB, LÄRM, EN | Material: | TP304L |
|---|---|---|---|
| Spezifikation: | Stahlrauchrohr ASTM A269/A269M-15A 38.1X1.59MM/nahtlose Rauchrohre/nahtloses Stahlrohr | Paket: | Seetaugliches Standardpaket |
| Verarbeitung: | Verbiegen, schweißend, Decoiling und lochen, Schnitt und formen | Form: | Runde |
| Hervorheben |
Kessel-Stahlrohr ASTM A213,Kessel-Stahlrohr ASME SA213,Stahlrohr des Kessel-T92 |
||
Product Description
Beschreibung
HC-Turbine Abkommen mit nahtlosem Rohr und Rohr des Edelstahls bereits mehr als 10 Jahre, jedes Jahr verkaufen mehr als 80000 Tonnen des nahtlosen Rohres und des Rohrs des Edelstahls. Unser Kunde bereits mehr als 45 Länder bedecken. Unser nahtloses Rohr und Rohr des Edelstahls waren die Breite, die in der Nahrungspflanze des Bergbaus, der Energie, der petrochemischen, chemischen Industrie, in der Papieranlage, im Gas und in flüssigem Industrie etc. ANSI B16.10 verwendet wurde: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS
| Rohr-Größen für Wärmetauscher u. Kondensatore u. Kessel | |||||||||
| Außendurchmesser | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Wandstärke Millimeter | |||||||||
| 0,508 | 0,71 | 0,89 | 1,24 | 1,65 | 2,11 | 2,77 | 3,40 | ||
| Millimeter | Zoll | Gewicht kg/m | |||||||
| 6,35 | 1/4 | 0,081 | 0,109 | 0,133 | 0,174 | 0,212 | |||
| 9,53 | 3/8 | 0,126 | 0,157 | 0,193 | 0,257 | 0,356 | 0,429 | ||
| 12,7 | 1/2 | 0,214 | 0,263 | 0,356 | 0,457 | 0,612 | 0,754 | ||
| 15,88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0,995 | ||
| 19,05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1,236 | ||
| 25,4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1,234 | 1,574 | 2,05 | |
| 31,75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1,244 | 1,574 | 2,014 | 2,641 | |
| 38,1 | 1 1/2 | 0,667 | 0,832 | 1,144 | 1,514 | 1,904 | 2,454 | 3,233 | |
| 44,5 | 1 3/4 | 1,342 | 1,774 | 2,244 | 2,894 | 3,5 | |||
| 50,8 | 2 | 1,549 | 2,034 | 2,574 | 3,334 | 4,03 | |||
| 63,5 | 2 1/2 | 1,949 | 2,554 | 3,244 | 4,214 | 5,13 | |||
| 76,2 | 3 | 2,345 | 3,084 | 3,914 | 5,094 | 6,19 | |||
| 88,9 | 3 1/2 | 2,729 | 3,609 | 4,584 | 5,974 | 7,27 | |||
| 101,6 | 4 | 4,134 | 5,254 | 6,854 | 8,35 | ||||
| 114,3 | 4 1/2 | 4,654 | 5,924 | 7,734 | 9,43 | ||||
Chemische Zusammensetzung und mechanische Eigenschaften
| Grad | Chemikalie Composition% | ||||||||
| C | Si | Mangan | P, S maximal | Cr | MO | Ni maximal | V | Al Max | |
| T2 | 0.10~0.20 | 0.10~0.30 | 0.30~0.61 | 0,025 | 0.50~0.81 | 0.44~0.65 | – | – | – |
| T11 | 0.05~0.15 | 0.50~1.00 | 0.30~0.60 | 0,025 | 1.00~1.50 | 0.44~0.65 | – | – | – |
| T12 | 0.05~0.15 | Maximales 0,5 | 0.30~0.61 | 0,025 | 0.80~1.25 | 0.44~0.65 | – | – | – |
| T22 | 0.05~0.15 | Maximales 0,5 | 0.30~0.60 | 0,025 | 1.90~2.60 | 0.87~1.13 | – | – | – |
| T91 | 0.07~0.14 | 0.20~0.50 | 0.30~0.60 | 0,02 | 8.0~9.5 | 0.85~1.05 | 0,4 | 0.18~0.25 | 0,015 |
| T92 | 0.07~0.13 | Maximales 0,5 | 0.30~0.60 | 0,02 | 8.5~9.5 | 0.30~0.60 | 0,4 | 0.15~0.25 | 0,015 |
| Grad | Chemikalie Composition% | Mechanische Eigenschaften | |||||||
| W | B | Notiz: | N | T.S | Y.P | Verlängerung | Härte | ||
| T2 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T11 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T12 | – | – | – | – | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW (85HRB) | |
| T22 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T91 | – | – | 0.06~0.10 | 0.03~0.07 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW (25HRB) | |
| T92 | 1.50~2.00 | 0.001~0.006 | 0.04~0.09 | 0.03~0.07 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW (25HRB) | |
T2 ASTM A213/ASME SA213, T11, T12, T22, T91, Toleranz T92
| Außendurchmesser | Od-Toleranz | GEWICHT Toleranz | Ovality-Toleranz | Schneiden Sie Längen-Toleranz |
| OD≤ 12, 7 Millimeter | ± 0, 13 Millimeter | ± 15% | – | + 3, 18 Millimeter, – 0 Millimeter |
| 12, 7 Millimeter < OD=""> | ± 0, 13 Millimeter | ± 10% | maximal, 1, 65 Millimeter | + 3, 18 Millimeter, – 0 Millimeter |
| 38, 1 Millimeter < OD=""> | ± 0, 25 Millimeter | ± 10% | maximal, 2, 41 Millimeter | + 4, 76 Millimeter, – 0 Millimeter |
Anwendungs-Industrien
- Offshoreerdölbohrungs-Firmen
- Stromerzeugung
- Erdölchemikalien
- Gas-Verarbeitung
- Spezialitäten-Chemikalien
- Pharmazeutische Produkte
- Pharmazeutische Ausrüstung
- Chemische Ausrüstung
- Meerwasser-Ausrüstung
- Wärmetauscher
- Kondensatore
