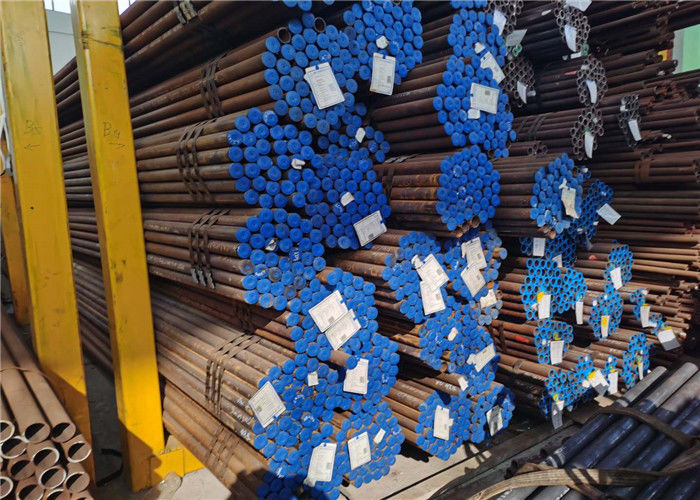

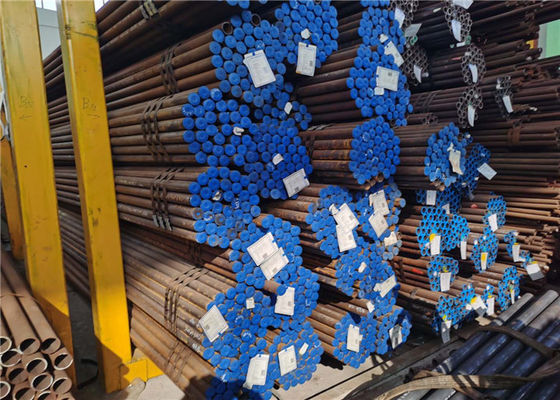

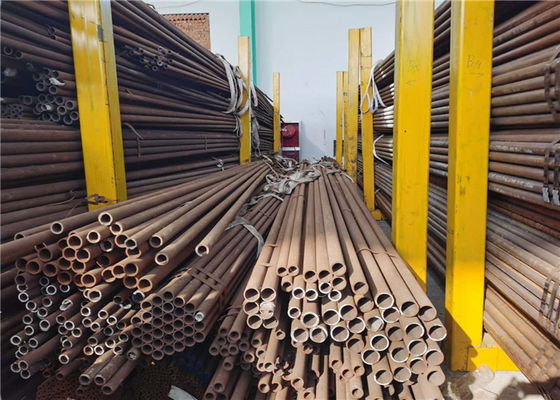

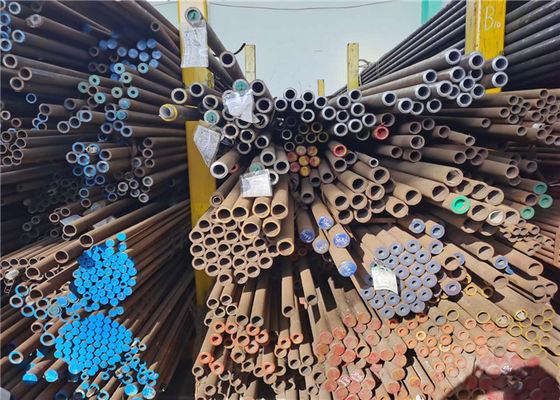

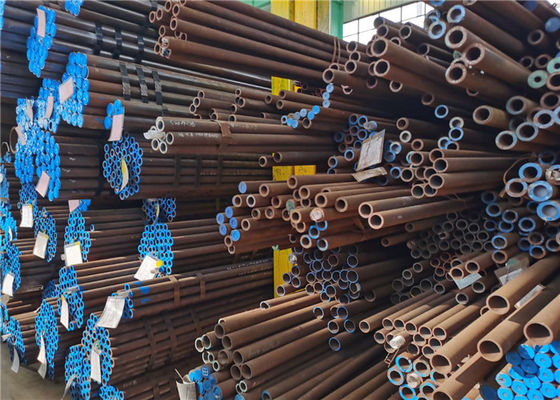

TUV GB5310 galvanisierte Kohlenstoffstahl-nahtloses Rohr
Product Details
| Produktname: | Rauchrohr | Standard: | Chinesisches GB5310 |
|---|---|---|---|
| Anwendung: | Heizungrohrleitungen, Behälter, Kohleeinsparungsgerätüberhitzer und Nachbrenner | Hauptstahlrohrgrad: | 20G、 25MnG、 15MoG、 15CrMoG、 12Cr2MoG、 12Cr1MoVG |
| Material: | Kohlenstoffstahl | Hafen: | Shanghai |
| Hervorheben |
galvanisiertes nahtloses Rohr des Kohlenstoffstahls,Nahtloses Rohr des GB5310 Kohlenstoffstahls,Nahtloses Rohr des TUV-Kohlenstoffstahls |
||
Product Description
Korrosionsbeständiges galvanisiertes Kohlenstoffstahl-nahtloses Rohr und Rohr
Produkt-Details
Chemisches Compositon u. mechanisches Propertise:
| Standard | Grad | Chemische Zusammensetzung (%) | ||||||
| C | Mangan | Si | V | Cr | MO | P.S | ||
| GB5310 | 20G | 0.17~0.24 | 035~0.65 | 0.17~0.37 | / | / | / | ≤ 0,030 |
| 25MnG | 0.22~0.30 | 0.70~1.00 | 0.17~0.37 | / | / | / | ≤ 0,030 | |
| 15MoG | 0.12~0.20 | 0.40~0.80 | 0.17~0.37 | / | / | 0.25~0.35 | ≤ 0,030 | |
| 15CrMoG | 0.12~0.18 | 0.40~0.70 | 0.17~0.37 | / | 0.80~1.10 | 0.40~0.55 | ≤ 0,030 | |
| 12Cr2MoG | 0.08~0.15 | 0.40~0.70 | ≤ 0,50 | / | 2.00~2.50 | 0.90~1.20 | ≤ 0,030 | |
| 12Cr1MoVG | 0.08~0.15 | 0.40~0.70 | 0.17~0.37 | 0.15~0.30 | 0.90~1.20 | 0.25~0.35 | ≤ 0,030 | |
| Mechanisches Propertise | Dehnfestigkeit (Mpa) | Streckgrenze (Mpa) | Verlängerung (%) | |||||
| 20G | 410~550 | ≥ 245 | ≥ 24 | |||||
| 25MnG | ≥ 415 | ≥ 240 | ≥ 22 | |||||
| 15MoG | 450~600 | ≥ 270 | ≥ 22 | |||||
| 15CrMoG | 440~640 | ≥ 235 | ≥ 21 | |||||
| 12Cr2MoG | 450~600 | ≥ 280 | ≥ 20 | |||||
| 12Cr1MoVG | 470~640 | ≥ 255 | ≥ 21 | |||||
Product Highlights
Korrosionsbeständiges galvanisiertes Kohlenstoffstahl-nahtloses Rohr und Rohr Produkt-Details Ware heißes eingetauchtes und vor-galvanisiertes Stahlrohr Od 10-600mm (Runde) Stärke 1.2-30mm Länge 3-12m oder gemäß der Anforderungen der Kunden Material Q195-Grade B, SS330, SPC, S185Q215-Grade C, CS Art ...
Schweißende kundengebundene Hochfrequenzkohle feuerte Dampfkessel-Teile stapeln Ekonomiser-Spule ab
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil Boiler economizer Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there
Schweißendes Kessel-gewundenes Flossen-Hochfrequenzrohr für Ekonomiser-Wärmeübertragung
High Frequency Welding Boiler Spiral Fin Tube For Economizer Heat Transfer Boiler economizer Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there are a huge
Art Kessel-Teil-Rohr des Wärmetauscher-H für Gebrauchskraftwerk-Anlage
High Efficient Heat Exchang H Type High Temperature Resistance Boiler Parts For Utility/Power Station Plant Product Introduce H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H
Erweiterungs-Heizfläche-Kessel-Flossen-Rohr für Wirtschaftsmacht-Kraftwerk-Kessel
Energy Saving Extension Heating Surface Boiler Fin Tube For Industrial Power Plant Boiler Product Description H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface. H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer,
