Kohlenstoffstahl-Rohrbogen ASTM A234 WPB-S LR SR DN300 SCH120 BW SMLS B16.9 Schwarz-Oberfläche
Product Details
| Material: | DN300/200 SCH120 B16.9 | Anwendung: | Kessel, Energie, Erdölchemikalie, Bergbau, Nahrung, Papier, Gas und flüssige Industrie |
|---|---|---|---|
| Größe: | Od: 1/2“ NOTIZ: - 48" NOTIZ:. GEWICHT: SCH 10S - SCH XXS | Standard: | ANSI B16.9, MSS SP 43 |

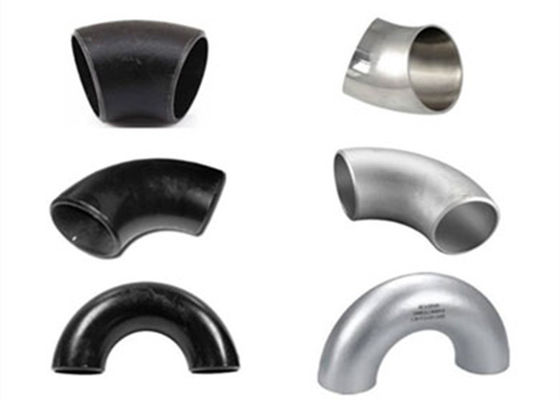

| Art: | Nahtlos/ERW/geschweißt/fabrizierte /Forged | Form: | Ellbögen herein lang u. kurzer Radius in 45 Grad, in 90 Grad, in 180 Grad, im Gleichgestellten, im u |
| Hervorheben |
Duplexstahlellbogen,Kolbenschweißungsellbogen |
||
Product Description

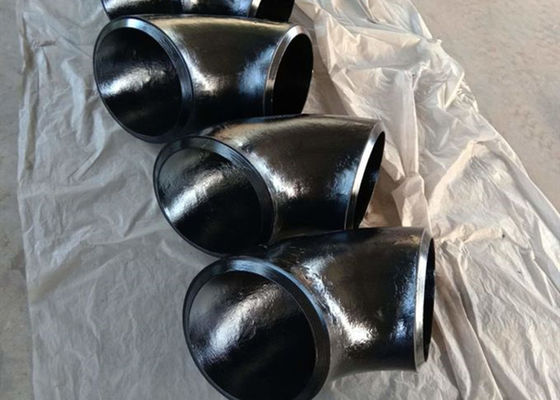

Kohlenstoffstahl-Installation, ASTM A234 WPB-S, LR-SR DES ELLBOGEN-90DEG, DN300 SCH120 BW SMLS B16.9, schwarze Oberfläche
Kohlenstoffstahl-Fitting - langer Radius-Ellbogen 90
Standard
| Nominal Rohr-Größe |
Draußen Durchmesser |
Nach innen Durchmesser |
Wand Stärke |
Mitte Zum Ende |
Rohr Zeitplan |
Gewicht Pfund |
| 1/2 | 0,84 | 0,622 | 0,109 | 1,5 | 40 | 0,16 |
| 3/4 | 1,05 | 0,824 | 0,113 | 1,5 | 40 | 0,17 |
| 1 | 1,32 | 1,049 | 0,133 | 1,5 | 40 | 0,4 |
| 1 1/4 | 1,66 | 1,38 | 0,14 | 1,88 | 40 | 0,55 |
| 1 1/2 | 1,9 | 1,61 | 0,145 | 2,25 | 40 | 0,8 |
| 2 | 2,38 | 2,07 | 0,154 | 3 | 40 | 1,6 |
| 2 1/2 | 2,88 | 2,47 | 0,203 | 3,75 | 40 | 3,2 |
| 3 | 3,5 | 3,07 | 0,216 | 4,5 | 40 | 4,8 |
| 3 1/2 | 4 | 3,55 | 0,226 | 5,25 | 40 | 6,6 |
| 4 | 4,5 | 4,03 | 0,237 | 6 | 40 | 8,9 |
| 5 | 5,56 | 5,05 | 0,258 | 7,5 | 40 | 15,1 |
| 6 | 6,62 | 6,07 | 0,28 | 9 | 40 | 24 |
| 8 | 8,62 | 7,98 | 0,322 | 12 | 40 | 47,8 |
| 10 | 10,75 | 10,02 | 0,365 | 15 | 40 | 83,4 |
| 12 | 12,75 | 12 | 0,375 | 18 | * | 123 |
| 14 | 14 | 13,25 | 0,375 | 21 | 30 | 155 |
| 16 | 16 | 15,25 | 0,375 | 24 | 30 | 206 |
| 18 | 18 | 17,25 | 0,375 | 27 | * | 262 |
| 20 | 20 | 19,25 | 0,375 | 30 | 20 | 324 |
| 24 | 24 | 23,25 | 0,375 | 36 | 20 | 466 |
| 30 | 30 | 29,25 | 0,375 | 45 | * | 720 |
| 36 | 36 | 35,25 | 0,375 | 54 | * | 1.039 |
| 42 | 42 | 41,25 | 0,375 | 63 | * | 1.420 |
| 48 | 48 | 47,25 | 0,375 | 72 | * | 2.000 |
Extrastarkes
| Nominal Rohr-Größe |
Draußen Durchmesser |
Nach innen Durchmesser |
Wand Stärke |
Mitte Zum Ende |
Rohr Zeitplan |
Gewicht Pfund |
| 1/2 | 0,84 | 0,546 | 0,147 | 1,5 | 80 | 0,26 |
| 3/4 | 1,05 | 0,742 | 0,154 | 1,5 | 80 | 0,29 |
| 1 | 1,32 | 0,957 | 0,179 | 1,5 | 80 | 0,48 |
| 1 1/4 | 1,66 | 1,27 | 0,191 | 1,88 | 80 | 0,79 |
| 1 1/2 | 1,9 | 1,5 | 0,2 | 2,25 | 80 | 1,2 |
| 2 | 2,37 | 1,93 | 0,218 | 3 | 80 | 2,1 |
| 2 1/2 | 2,88 | 2,32 | 0,276 | 3,75 | 80 | 3,8 |
| 3 | 3,5 | 2,9 | 0,3 | 4,5 | 80 | 6,3 |
| 3 1/2 | 4 | 3,36 | 0,318 | 5,25 | 80 | 8,6 |
| 4 | 4,5 | 3,82 | 0,337 | 6 | 80 | 12,5 |
| 5 | 5,56 | 4,81 | 0,375 | 7,5 | 80 | 21,2 |
| 6 | 6,63 | 5,76 | 0,432 | 9 | 80 | 34,4 |
| 8 | 8,63 | 7,63 | 0,5 | 12 | 80 | 71,3 |
| 10 | 10,75 | 9,75 | 0,5 | 15 | 60 | 111 |
| 12 | 12,75 | 11,75 | 0,5 | 18 | * | 158 |
| 14 | 14 | 13 | 0,5 | 21 | * | 201 |
| 16 | 16 | 15 | 0,5 | 24 | 40 | 270 |
| 18 | 18 | 17 | 0,5 | 27 | * | 348 |
| 20 | 20 | 19 | 0,5 | 30 | 30 | 422 |
| 24 | 24 | 23 | 0,5 | 36 | * | 604 |
| 30 | 30 | 29 | 0,5 | 45 | 20 | 997 |
| 36 | 36 | 35 | 0,5 | 54 | 20 | 1.380 |
| 42 | 42 | 41 | 0,5 | 63 | * | 1.880 |
| 48 | 48 | 47 | 0,5 | 72 | * | 2.502 |
Produktpalette:
Größe: 1/8" NOTIZ: BIS 48" NOTIZ: HEREIN
Zeitplan: SCH20, SCH30, SCH40, GESCHLECHTSKRANKHEIT, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Art: Nahtlos/ERW/geschweißtes/fabriziertes /Forged
Form: Exzenterreduzierer, konzentrischer Reduzierer
Materialien
Edelstahl-Reduzierer - SS-Reduzierer
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Kohlenstoffstahl-Reduzierer - CS Reduzierer
ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 U. WPHY 70.
Niedrige Temperatur-Kohlenstoffstahl-Reduzierer - LTCS-Reduzierer
ASTM A420 WPL3/A420WPL6
Legierter Stahl-Reduzierer - ALS Reduzierer
ASTM/ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplexstahlreduzierer
ASTM A 815 UNS KEIN S 31803, S 32205.
Nickel-Legierungs-Reduzierer
Standard
- ASTM-/ASME-SB 336.
- UNS 10276 (Reduzierer HASTELLOY C 276)
- UNS 2200 (NICKEL 200 Reduzierer),
- UNS 2201 (NICKEL 201 Reduzierer),
- UNS 4400 (Reduzierer MONEL 400),
- UNS 8020 (LEGIERUNG 20 Reduzierer),
- UNS 8825 (Reduzierer INCONEL 825),
- UNS 6600 (Reduzierer INCONEL 600),
- UNS 6601 (Reduzierer INCONEL 601),
- UNS 6625 (Reduzierer INCONEL 625),
Mehrwertdienste
- Feuerverzinkung
- Epoxidbeschichtung
