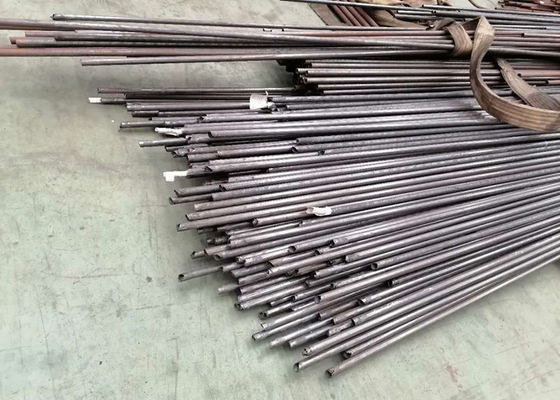

Legierter Stahl-nahtloses Rohr T11 T22 T23 T5 T9 T91 SA213 A213 für Wärmetauscher
Product Details
| Produkt-Name: | nahtloses Rohr des legierten Stahls | Anwendung: | Kessel, Überhitzer, Wärmetauscher |
|---|---|---|---|
| Grad: | T1, T11, T12, T2, T22, T23, T5, T9, T91, T92 | Standard: | ASTM A213/SMES SA213 |
| Hervorheben |
Nahtloses Rohr des legierten Stahls,Nickellegierungsrohr |
||
Product Description
Wärmetauscher-Rohr des legierten Stahl-SA213/A213 nahtloses der Rohr-T11 T22 T23 T5 T9 T91
Nahtloses Rohr legierten Stahls ASTM A213/ASME SA213 T9 T91 T92 für Kessel, Überhitzer, Wärmetauscheranwendung
HC-Turbine Versorgung enorme Menge des nahtlosen Rohres und des Rohrs der Legierung Cr-MO und exportieren mehr als 35 Länder. Unser nahtloses Rohr der Legierung ist die Breite, die im Kessel und in der Heizung verwendet wird.
| Kohlenstoff | Chromiun | Niedrige Temperatur | Edelstahl | Duplex | Copper&-Bronze | Titan | Ni-Legierung | ||
| SA178-A | SA213-T1 | SA333-Gr.1 | SA213 | TP316L | A789-S31803 | SB111-C70600 | SB338-GR.1 | SB163 | NO2200 |
| SA178-C | SA213-T11 | SA333-Gr.3 | SA249 | TP316H | A789-S32205 | SB111-C71500 | SB338-GR.2 | SB167 | NO2201 |
| SA179 | SA213-T12 | SA333-Gr.6 | SA268 | TP316Ti | A789-S32750 | SB111-C71640 | SB338-GR.5 | SB444 | NO8020 |
| SA192 | SA213-T22 | SA333-Gr.7 | SA269 | TP316LN | A789-S32760 | SB111-C68700 | SB338-GR.7 | SB514 | NO6022 |
| SA209-T1 | SA213-T5 | SA333-Gr.8 | SA376 | TP321 | A789-S32707 | SB111-C44300 | SB338-GR.9 | SB619 | N10276 |
| SA209-T1a | SA213-T9 | SA334-Gr.1 | TP304 | TP321H | A789-S32304 | SB338-GR.12 | SB622 | NO4400 | |
| SA209-T1b | SA213-T91 | SA334-Gr.3 | TP304L | TP347 | A789-S31500 | SB626 | NO6600 | ||
| SA210-A1 | SA334-Gr.6 | TP304H | TP347H | S31254 | SB674 | NO6601 | |||
| SA210-C | SA334-Gr.7 | TP304N | TP405 | 254MA | SB677 | NO6625 | |||
| SA214 | SA334-Gr.8 | TP310H | TP409 | 17-4PH | SB704 | NO690 | |||
| SA513 M.Ü. 1010 | TP310S | TP410 | 17-7PH | SB705 | NO8800 | ||||
| SA513 M.Ü. 1015 | TP309S | TP430 | 15-7PH | N1001 | NO8810 | ||||
| SA513 M.Ü. 1020 | TP317 | TP439 | N10665 | NO8811 | |||||
| TP317L | TP444 | N10675 | NO8825 | ||||||
| TP348 | TP446 | TP904L | |||||||
| TP347HFG | |||||||||
| Rohr-Größen für Wärmetauscher u. Kondensatore u. Kessel | |||||||||
| Außendurchmesser | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Wandstärke Millimeter | |||||||||
| 0,508 | 0,71 | 0,89 | 1,24 | 1,65 | 2,11 | 2,77 | 3,40 | ||
| Millimeter | Zoll | Gewicht kg/m | |||||||
| 6,35 | 1/4 | 0,081 | 0,109 | 0,133 | 0,174 | 0,212 | |||
| 9,53 | 3/8 | 0,126 | 0,157 | 0,193 | 0,257 | 0,356 | 0,429 | ||
| 12,7 | 1/2 | 0,214 | 0,263 | 0,356 | 0,457 | 0,612 | 0,754 | ||
| 15,88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0,995 | ||
| 19,05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1,236 | ||
| 25,4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1,234 | 1,574 | 2,05 | |
| 31,75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1,244 | 1,574 | 2,014 | 2,641 | |
| 38,1 | 1 1/2 | 0,667 | 0,832 | 1,144 | 1,514 | 1,904 | 2,454 | 3,233 | |
| 44,5 | 1 3/4 | 1,342 | 1,774 | 2,244 | 2,894 | 3,5 | |||
| 50,8 | 2 | 1,549 | 2,034 | 2,574 | 3,334 | 4,03 | |||
| 63,5 | 2 1/2 | 1,949 | 2,554 | 3,244 | 4,214 | 5,13 | |||
| 76,2 | 3 | 2,345 | 3,084 | 3,914 | 5,094 | 6,19 | |||
| 88,9 | 3 1/2 | 2,729 | 3,609 | 4,584 | 5,974 | 7,27 | |||
| 101,6 | 4 | 4,134 | 5,254 | 6,854 | 8,35 | ||||
| 114,3 | 4 1/2 | 4,654 | 5,924 | 7,734 | 9,43 | ||||
T2 ASTM A213/ASME SA213, chemische Zusammensetzung T11, T12, T22, T91, T92 und mechanische Eigenschaften
| Grad | Chemikalie Composition% | ||||||||
| C | Si | Mangan | P, S maximal | Cr | MO | Ni maximal | V | Al maximal | |
| T2 | 0.10~0.20 | 0.10~0.30 | 0.30~0.61 | 0,025 | 0.50~0.81 | 0.44~0.65 | – | – | – |
| T11 | 0.05~0.15 | 0.50~1.00 | 0.30~0.60 | 0,025 | 1.00~1.50 | 0.44~0.65 | – | – | – |
| T12 | 0.05~0.15 | Maximales 0,5 | 0.30~0.61 | 0,025 | 0.80~1.25 | 0.44~0.65 | – | – | – |
| T22 | 0.05~0.15 | Maximales 0,5 | 0.30~0.60 | 0,025 | 1.90~2.60 | 0.87~1.13 | – | – | – |
| T91 | 0.07~0.14 | 0.20~0.50 | 0.30~0.60 | 0,02 | 8.0~9.5 | 0.85~1.05 | 0,4 | 0.18~0.25 | 0,015 |
| T92 | 0.07~0.13 | Maximales 0,5 | 0.30~0.60 | 0,02 | 8.5~9.5 | 0.30~0.60 | 0,4 | 0.15~0.25 | 0,015 |
| Grad | Chemikalie Composition% | Mechanische Eigenschaften | |||||||
| W | B | Notiz: | N | T.S | Y.P | Verlängerung | Härte | ||
| T2 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T11 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T12 | – | – | – | – | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW (85HRB) | |
| T22 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T91 | – | – | 0.06~0.10 | 0.03~0.07 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW (25HRB) | |
| T92 | 1.50~2.00 | 0.001~0.006 | 0.04~0.09 | 0.03~0.07 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW (25HRB) | |
T2 ASTM A213/ASME SA213, T11, T12, T22, T91, Toleranz T92
| Außendurchmesser | Od-Toleranz | GEWICHT Toleranz | Ovality-Toleranz | Schneiden Sie Längen-Toleranz |
| OD≤ 12, 7 Millimeter | ± 0, 13 Millimeter | ± 15% | – | + 3, 18 Millimeter, – 0 Millimeter |
| 12, 7 Millimeter < OD=""> | ± 0, 13 Millimeter | ± 10% | maximal, 1, 65 Millimeter | + 3, 18 Millimeter, – 0 Millimeter |
| 38, 1 Millimeter < OD=""> | ± 0, 25 Millimeter | ± 10% | maximal, 2, 41 Millimeter | + 4, 76 Millimeter, – 0 Millimeter |
- Rohr des legierten Stahl-T11 für Stromerzeugung, Erdöl und andere Dienstleistungen der hohen Temperatur
- Rohr des legierten Stahl-T22 für Stromerzeugung, Erdöl und andere Dienstleistungen der hohen Temperatur
- Rohr des legierten Stahl-T5 für Erdöl
- Rohr des legierten Stahl-T9 für Erdöl
- Rohr des legierten Stahl-T91 für Stromerzeugung
- Rohr des legierten Stahl-T92 für Stromerzeugung
- Rohr des legierten Stahl-T1 für Kesselersatz und -reparatur
- Rohr T1-SA209 für Herstellungskessel
- Legierter Stahl-Rohr ASTM A213/ASME SA213 T5 für Überhitzer
- Legierter Stahl-Rohr ASTM A213/ASME SA213 T5 für Wärmetauscher
