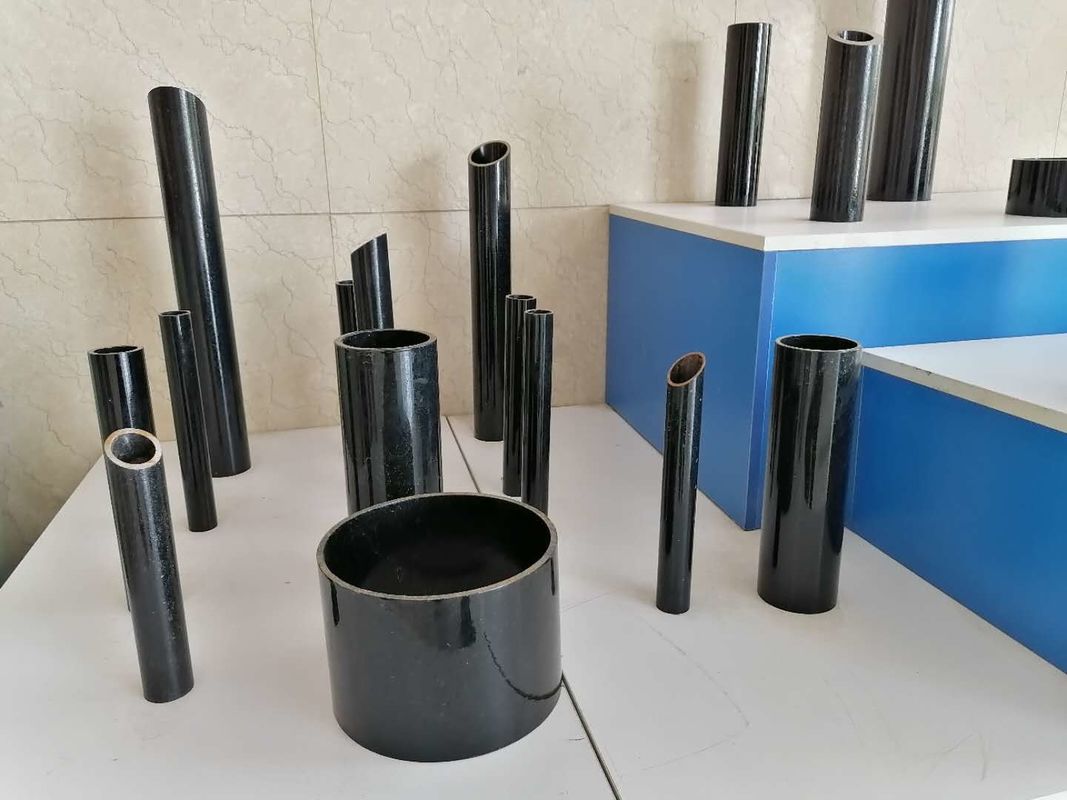

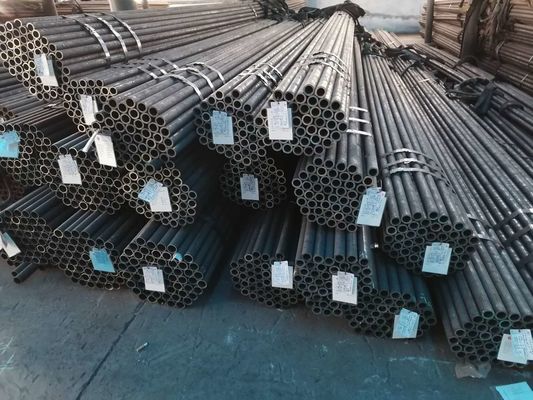

Kohlenstoffstahl-nahtloses Rohr A179 SA179SMLS zum hohen mittleren Niederdruck-Kessel-Zweck
Product Details
| Material: | Kohlenstoffstahl | Oberflächenveredelung: | Getempert, normalisiert, gemildert |
|---|---|---|---|
| Anwendung: | Für Kessel des hohen, mittleren, Niederdruckes und Druck | Form: | Rundes nahtloses |
| Hervorheben |
nahtloses Rohr des Cs,Cs galvanisiertes Rohr |
||
Product Description
Einzelspezifikation:
Produktions-Standard, Grad, Stahl nicht:
Grad A, C, D ASTM A178
Grad A, C, D ASTM A179
ASTM A192
ASTM A210 GradeA-1, C
BS3059-,Ⅰ 320 CFS-
BS3059-Ⅱ 360, 440, 243, 620-460, 622-490, S1, S2, TC1, TC2
EN10216-1 P195TR1/TR2, P235TR1/TR2, P265TR1/TR2
EN10216-2 P195GH, P235GH, P265GH, TC1, TC2
DIN17175 ST35.8, ST45.8
DIN1629 ST37.0, ST44.0, ST50.0
JIS G3454 STPG370, STPG410
JIS G3461 STB340, STB410, STB440
GB5310 20G, 15MoG, 12CrMoG, 12Cr2MoG, 15CrMoG, 12Cr1MoVG, 12Cr2MoWVTiB
GB9948 10, 20, 12CrMo, 15CMo
GB3087 10, 20
Lieferbedingung:
Getempert, normalisiert, normalisiert und gemildert
Inspektion und Test:
Chemische Zusammensetzungs-Inspektion, mechanische Eigenschaften prüfen (Dehnfestigkeit, Streckgrenze,
Verlängerung, erweiternd, Flachdrücken, Verbiegen, Härte, Schlagversuch), Oberfläche und Maß-Test, NO-destruktiver Test, hydrostatischer Test.
Oberflächenbehandlung:
Öl-Bad, Lack, Passivierung, phosphatierend, Strahlen
Anwendung
Für Kessel des hohen, mittleren, Niederdruckes und Druckzweck
| Rohr-Größen für Wärmetauscher u. Kondensatore u. Kessel | |||||||||||
| Außendurchmesser | BWG | ||||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||||
| Wandstärke Millimeter | |||||||||||
| 0,508 | 0,71 | 0,89 | 1,24 | 1,65 | 2,11 | 2,77 | 3,40 | ||||
| Millimeter | Zoll | Gewicht kg/m | |||||||||
| 6,35 | 1/4 | 0,081 | 0,109 | 0,133 | 0,174 | 0,212 | |||||
| 9,53 | 3/8 | 0,126 | 0,157 | 0,193 | 0,257 | 0,356 | 0,429 | ||||
| 12,7 | 1/2 | 0,214 | 0,263 | 0,356 | 0,457 | 0,612 | 0,754 | ||||
| 15,88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0,995 | ||||
| 19,05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1,236 | ||||
| 25,4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1,234 | 1,574 | 2,05 | |||
| 31,75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1,244 | 1,574 | 2,014 | 2,641 | |||
| 38,1 | 1 1/2 | 0,667 | 0,832 | 1,144 | 1,514 | 1,904 | 2,454 | 3,233 | |||
| 44,5 | 1 3/4 | 1,342 | 1,774 | 2,244 | 2,894 | 3,5 | |||||
| 50,8 | 2 | 1,549 | 2,034 | 2,574 | 3,334 | 4,03 | |||||
| 63,5 | 2 1/2 | 1,949 | 2,554 | 3,244 | 4,214 | 5,13 | |||||
| 76,2 | 3 | 2,345 | 3,084 | 3,914 | 5,094 | 6,19 | |||||
| 88,9 | 3 1/2 | 2,729 | 3,609 | 4,584 | 5,974 | 7,27 | |||||
| 101,6 | 4 | 4,134 | 5,254 | 6,854 | 8,35 | ||||||
| 114,3 | 4 1/2 | 4,654 | 5,924 | 7,734 | 9,43 | ||||||
| Form des Rohrs: Gerade u. Umkehrbogen u. gerippt u. umwickelt | |||||||||||
Edelstahl-Rohr: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, | |||||||||||
| Kohlenstoff-&Alloy Stahlrohr: A/SA178, A/SA179, A/SA192, A/SA209, A/SA210, A/SA213, A.SA214 | |||||||||||
Bescheinigung
